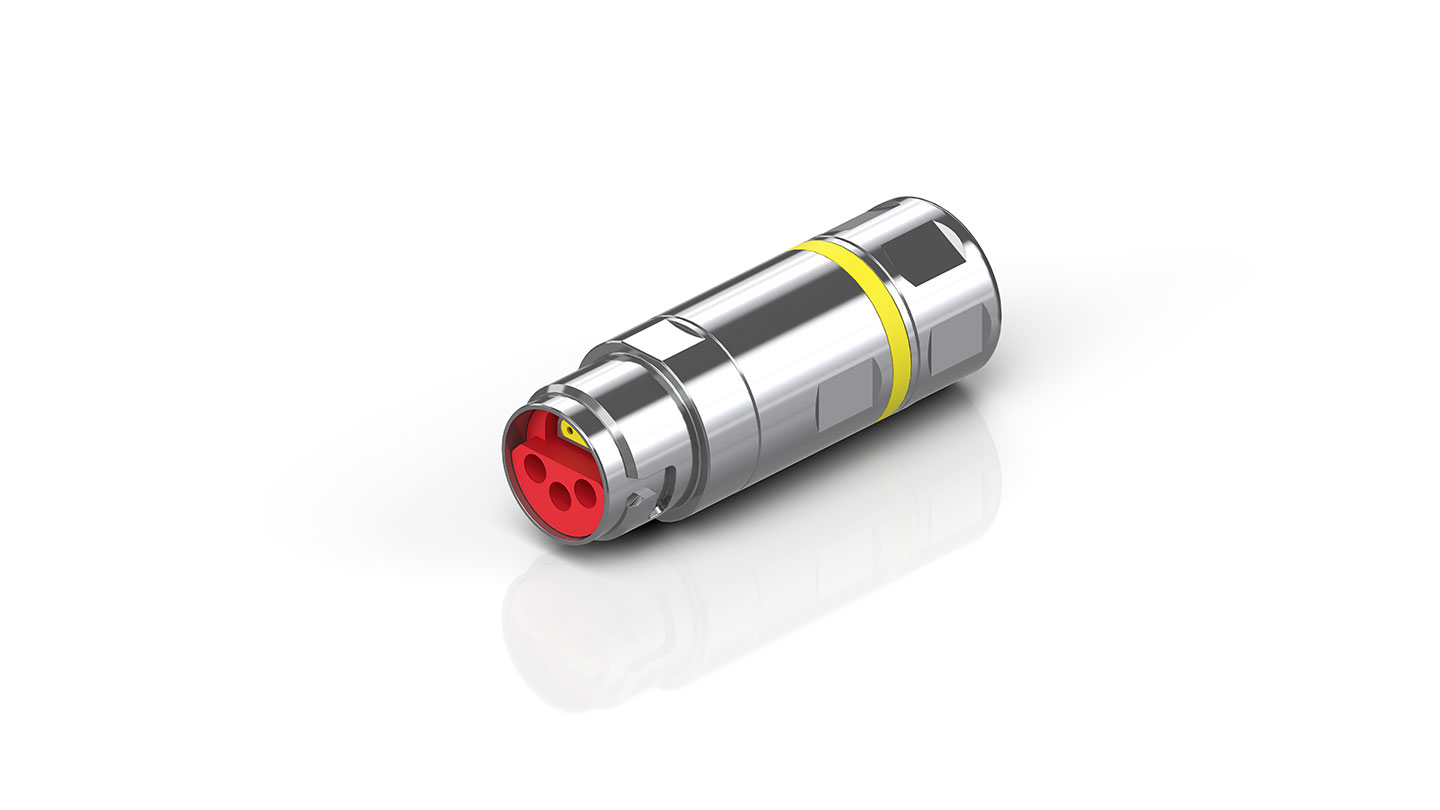

ZS7200-A011 | Socket, field assembly, EtherCAT/Ethernet, IP65/67, shielded
ZS7200-A011 | Socket, field assembly, EtherCAT/Ethernet, IP65/67, shielded
One Cable Automation (OCA): The hybrid connector for all applications
One Cable Automation (OCA): The cabling philosophy for distributed automation technology
One Cable Automation (OCA): The single-cable solution for supplying distributed automation technology
Hybrid connector series: Cabling options and application examples
Product information
| Technical data | ZS7200-A011 |
|---|---|
| Shielding | yes |
| Installation size | B17 |
| Connector type | socket |
| Contact type | male+female |
| Number of positions (face) | pins 2+PE+4 |
| Coding | EtherCAT-coded |
| Mating cycles | ≥ 100 |
| Wire termination | crimp connection |
| Max. wire cross-section (power) | AWG16/1.5 mm² |
| Max. wire cross-section (Ethernet) | AWG22/0.34 mm² |
| Max. cable outer diameter | 10.0…11.5 mm |
For further technical details, please refer to the data sheet.
| A1 | approx. 70.0 mm |
| A2 | Ø 23.0 mm |
| Ordering information | |
|---|---|
| ZS7200-A011 | B17, plug, metal, shielded, crimp, straight, male+female, 3+4-pin, EtherCAT-coded, IP65/67, Ø 10.0…11.5 mm |
