2 | Rx+/GNDP
3 | Rx-/UP
4 | Tx-/US
EPP6090-0000 | Display box with navigation switch and operating hours counter
EtherCAT P: The one cable solution – One step closer to automation without control cabinets
The EPP6090-0000 display box has an illuminated, low-reflection LC display with two lines of 16 characters. It can be used, for example, for displaying status messages or diagnostic information. A non-resettable operating hours counter is integrated and can be displayed and also read out via the controller.
Via the user program dynamic and static application-specific texts can be displayed, e.g. “Production counter: (count value)”. If the output text is longer than 16 characters, the box automatically switches to scrolling text mode. Two special characters can be defined via a 5 x 8 pixel matrix.
The statuses of the navigation switch – up, down, left, right and OK – are transmitted to the controller as binary variables and can be used, for example, to control the display.
Product announcement | estimated market release 2nd quarter 2021

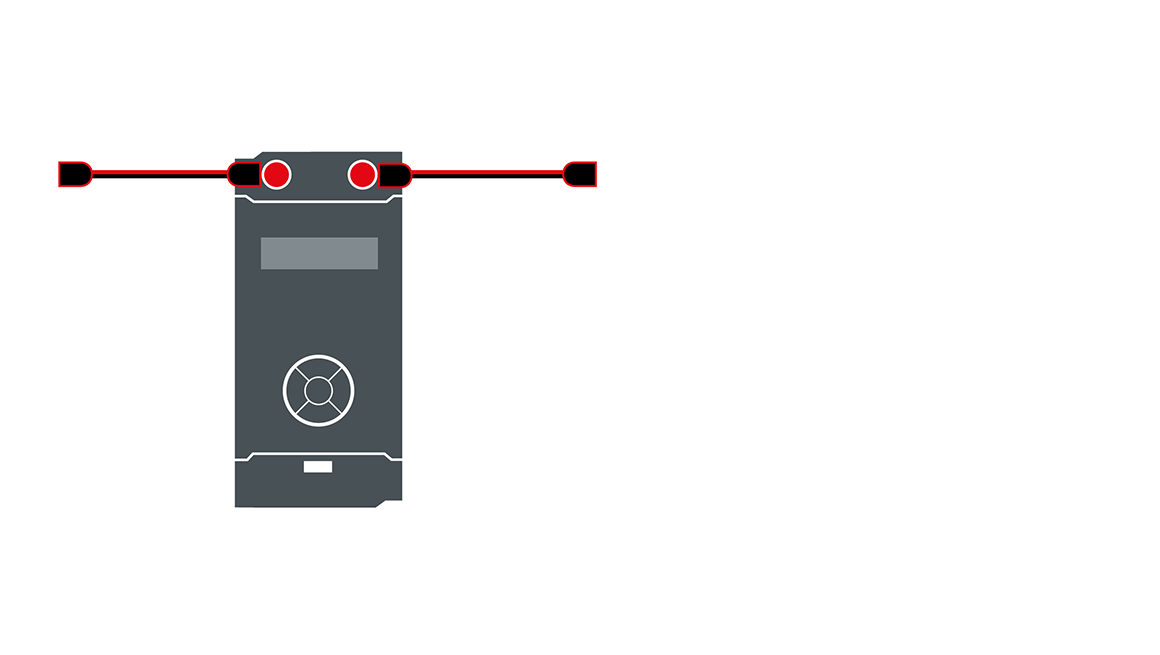

|Bus interface||2 x M8 socket, shielded, screw type, P-coded|
|Technology||EtherCAT P display box|
|Switch inputs||navigation switch: up, down, left, right, OK|
|Display||LC display, 2 x 16 characters (> 16 characters = scrolling text mode), switchable backlight|
|Special characters||2 characters (5 x 8 pixel matrix)|
|Operating hours counter||32 bit overflow after 136 years (no reset possible), secure data storage > 100 years (@15 minutes writing interval), accuracy: ±50 ppm|
|Time measuring||4 x 32 bit second counter (reset possible)|
|Counter||4 x 32 bit counter (reset possible)|
|Storage interval||manually/automatically every 15 minutes|
|Current consumption from US||typ. 130 mA + sensor supply|
|Weight||approx. 230 g|
|Operating/storage temperature||0…+55 °C/-25…+85 °C|
|Vibration/shock resistance||conforms to EN 60068-2-6/EN 60068-2-27|
|EMC immunity/emission||conforms to EN 61000-6-2/EN 61000-6-4|
|Protect. class/installation pos.||IP 65/66/67 (conforms to EN 60529)/variable|
|Approvals/markings||CE, UL in preparation|
|Housing data||16 x M8, 8 x M12|
|Dimensions (W x H x D)||60 mm x 126 mm x 26.5 mm|
|Installation||2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4|
