The EtherCAT plug-in modules of the EJ2xxx series are intended for processing digital/binary signals. Unless otherwise stated, the high level corresponds to the supply voltage in the positive switching logic, the low level corresponds to ground. With the ground-switching logic, it is reversed. Different supply voltages are available for both types of logic.
In terms of technology, the EJxxxx EtherCAT plug-in modules are usually based on the ELxxxx EtherCAT Terminals with matching name. This allows initial tests to be carried out with EL terminals, while the corresponding EJ module on the signal distribution board is used in subsequent series production.
Advantages:
- finely scalable channel density and functionality
- maximum packing density for compact solutions
- For some terminals the XFC timestamp function enables µs-precise synchronization of the switching process with other processes.
Areas of application:
- switching of standard actuators such as contactors and valves
- increase in machine efficiency/clock rate through XFC I/Os
TwinSAFE, outputs
The EJ29xx EtherCAT plug-in module series provides fail-safe switching of actuators. The outputs are controlled by a TwinSAFE Logic-capable component via FSoE.
- Reset all filter values
- Results: 12
EJ1957 | EtherCAT plug-in module, 8-channel digital input + 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE, TwinSAFE Logic
- Channels:
- 12, Combi
- Value range (digital/encoder):
- 24 V
- Input/output specification (digital):
- positive switching, potential-free, static signals, dynamic signals, OSSD
- TwinSAFE type:
- input, logic and output
EJ2008 | EtherCAT plug-in module, 8-channel digital output, 24 V DC, 0.5 A
- Channels:
- 8
- Value range (digital/encoder):
- 24 V
- Output current:
- 0.5 A
EJ2128 | EtherCAT plug-in module, 8-channel digital output, 3.3 V DC/5 V DC, 20 mA
- Channels:
- 8
- Value range (digital/encoder):
- 3.3 V, 5 V/TTL
- Output current:
- 0.02 A
EJ2262 | EtherCAT plug-in module, 2-channel digital output, 24 V DC, 0.5 A, oversampling
- Channels:
- 2
- Value range (digital/encoder):
- 24 V
- Output current:
- 0.5 A
EJ2502 | EtherCAT plug-in module, 2-channel PWM output, 24 V DC, 0.5 A
- Channels:
- 2
- Value range (digital/encoder):
- 24 V
- Output current:
- 0.5 A
EJ2521-0224 | EtherCAT plug-in module, 1-channel pulse train output, 24 V DC, 1 A, with capture/compare input/output
- Channels:
- 1
- Value range (digital/encoder):
- 24 V
- Output current:
- 1 A

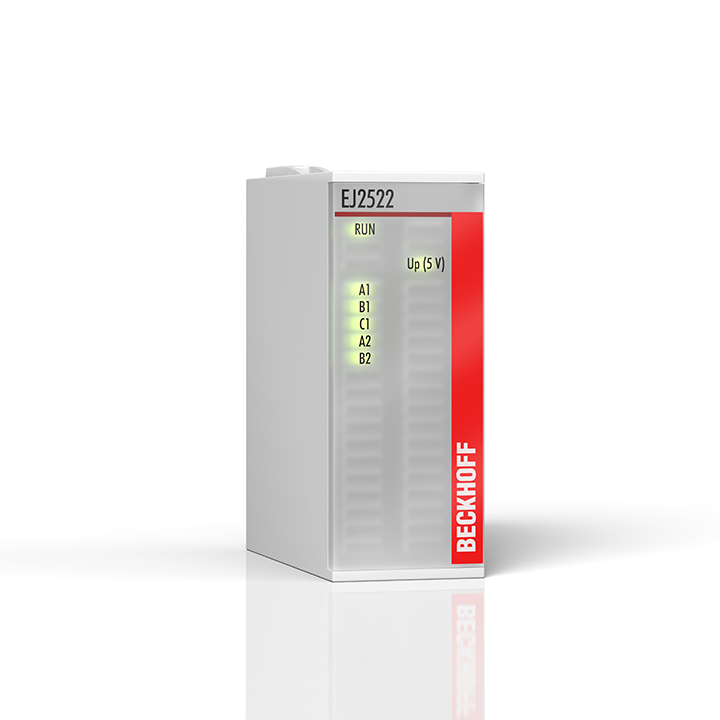

EJ2522 | EtherCAT plug-in module, 2-channel pulse train output, incr. enc. simulation, RS422, 50 mA
- Channels:
- 2
- Value range (digital/encoder):
- RS422
- Output current:
- 0.05 A

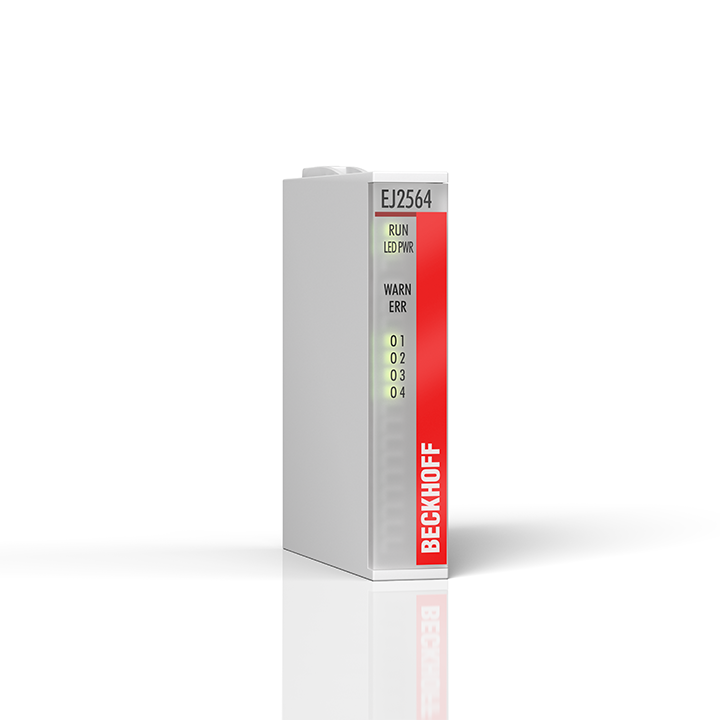

EJ2564 | EtherCAT plug-in module, 4-channel LED output, 5…48 V DC, 4 A, RGBW, common anode
- Channels:
- 4
- Value range (digital/encoder):
- 5 V/TTL, 12 V, 24 V, 25 V, 30 V, 48 V
- Output current:
- 4 A
EJ2809 | EtherCAT plug-in module, 16-channel digital output, 24 V DC, 0.5 A
- Channels:
- 16
- Value range (digital/encoder):
- 24 V
- Output current:
- 0.5 A
EJ2889 | EtherCAT plug-in module, 16-channel digital output, 24 V DC, 0.5 A, ground switching
- Channels:
- 16
- Value range (digital/encoder):
- 24 V
- Output current:
- 0.5 A
EJ2914 | EtherCAT plug-in module, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE, TwinSAFE Logic
- Channels:
- 4
- Value range (digital/encoder):
- 24 V
- Input/output specification (digital):
- positive switching
- TwinSAFE type:
- logic and output
EJ2918 | EtherCAT plug-in module, 8-channel digital output, 24 V DC, 0.5 A, TwinSAFE, TwinSAFE Logic
- Channels:
- 8
- Value range (digital/encoder):
- 24 V
- Input/output specification (digital):
- positive switching
- TwinSAFE type:
- logic and output
