AL8000 | Highly dynamic linear servomotors
The AL8000 motors are characterized by a modular coil concept and the extremely high force density generated from it.
AL2000 | Linear Servomotors
The AL2000 motors have high peak forces for use in highly dynamic applications. They are available in three different widths.
AA3000 | Electric cylinder
The AA3000s are powerful spindle drives for the replacement of pneumatic or hydraulic drives. Optionally available with holding brake and other spindle pitches.
AA2500 | Tubular motors
The ironless tubular motors from the AA2500 series are backlash-free and wear-free drives that meet the highest requirements for precision and dynamics.
AA1000 | Linear actuators
Both the servo drive and the absolute measuring system are already integrated in the ultra-compact linear actuators.
All drive solutions can be optimally supplemented with our complete and field-proven portfolio of accessories.
The motion software products optimally support the selection and commissioning of suitable hardware components for drive solutions.
Direct drives for dynamics and high precision
Translatory servomotor systems come into their own precisely where high dynamics and very high requirements for accuracy are important. There is no need to perform a mechanical implementation that is prone to backlash and reduces the efficiency of the system. The connection of the load to the motor is backlash-free; the position measuring system is mounted directly on the load or on the motor and allows a backlash-free, very dynamic, and precise position control. The direct translatory movement of the linear motor, in combination with high-resolution position feedback, is the basic prerequisite for the realization of high-precision machines.
Modular and highly dynamic
The AL8000 linear motor series, which was developed in a modular design, is available in three widths and with up to 48 coils. Developed and produced in Germany, the series offers a high level of quality, flexible adaptation to customer requirements, and extremely short delivery times. All linear motors from the AL8000 series have an unconnected cable end with a fixed length, which contains both the power supply and the temperature contact. This reduces material costs, possible sources of error, and installation work.
The 3-phase synchronous linear servomotors of the AL2000 series consist of a primary part and a secondary part. The primary part contains a grooved, laminated core with inlaid copper windings. It is generally used as the moving part. The secondary part contains the steel plate with attached permanent magnets.
Cogging-free and powerful

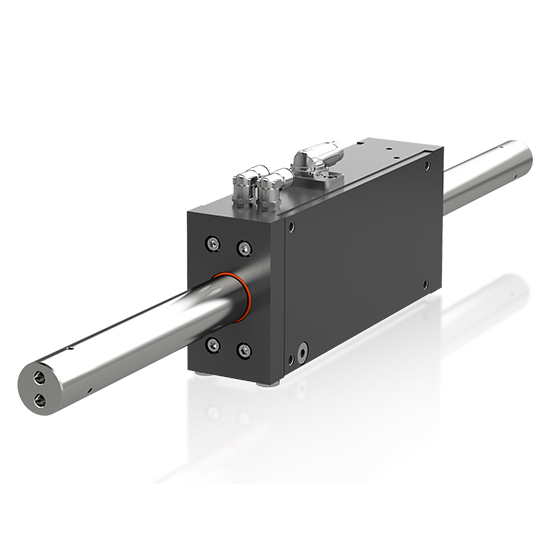

The ironless tubular motor from the AA2500 series is completely cogging-free and can perform highly dynamic movements very precisely. Ideally suited for the highest requirements, for example in machine tool construction, the magnetic rod in the motor housing has been arranged absolutely backlash-free and wear-free. This arrangement also simplifies integration into the machine design. In general, the motor can be operated with a moving magnetic rod or moving motor housing and thus offers further application possibilities. The tubular motor is optimally matched to the AX8000 and AX5000 series of servo drives.
The AA1000 linear actuators from the compact drive technology product area are equipped with an integrated 48 V servo drive and can be installed decentralized in the machine. The integrated absolute encoder eliminates the need for additional limit switches or external measuring systems for operation, making installation even easier. Communication takes place via EtherCAT; unnecessarily long cables can be dispensed with when wiring by daisy-chain. In addition, a variant with a stainless steel housing is available in the highest protection class for particularly adverse environmental conditions.
The highly integrated electric cylinders from the AA3000 series combine translatory applications with the proven AM8000 construction kit. The linear guided, low-maintenance and highly precise spindle drive is integrated in the motor housing with a rigid and backlash-free bearing and thus makes the most compact dimensions possible. Propulsion is provided by proven AM8000 components, resulting in the typical advantages such as the electronic identification plate, Sil-2 safety encoder or optional holding brakes. The drive is thus fully compatible with the servo drives from the AX5000 or AX8000 series and can be connected as usual with an OCT cable. Flange compatibility with ISO 15552 enables the simple conversion of pneumatics in existing applications.
Supplementary and intuitive
An extensive and optimally matched range of accessories rounds off the translatory product portfolio. The motion software products optimally support you with the selection and commissioning of suitable hardware components for drive solutions.
